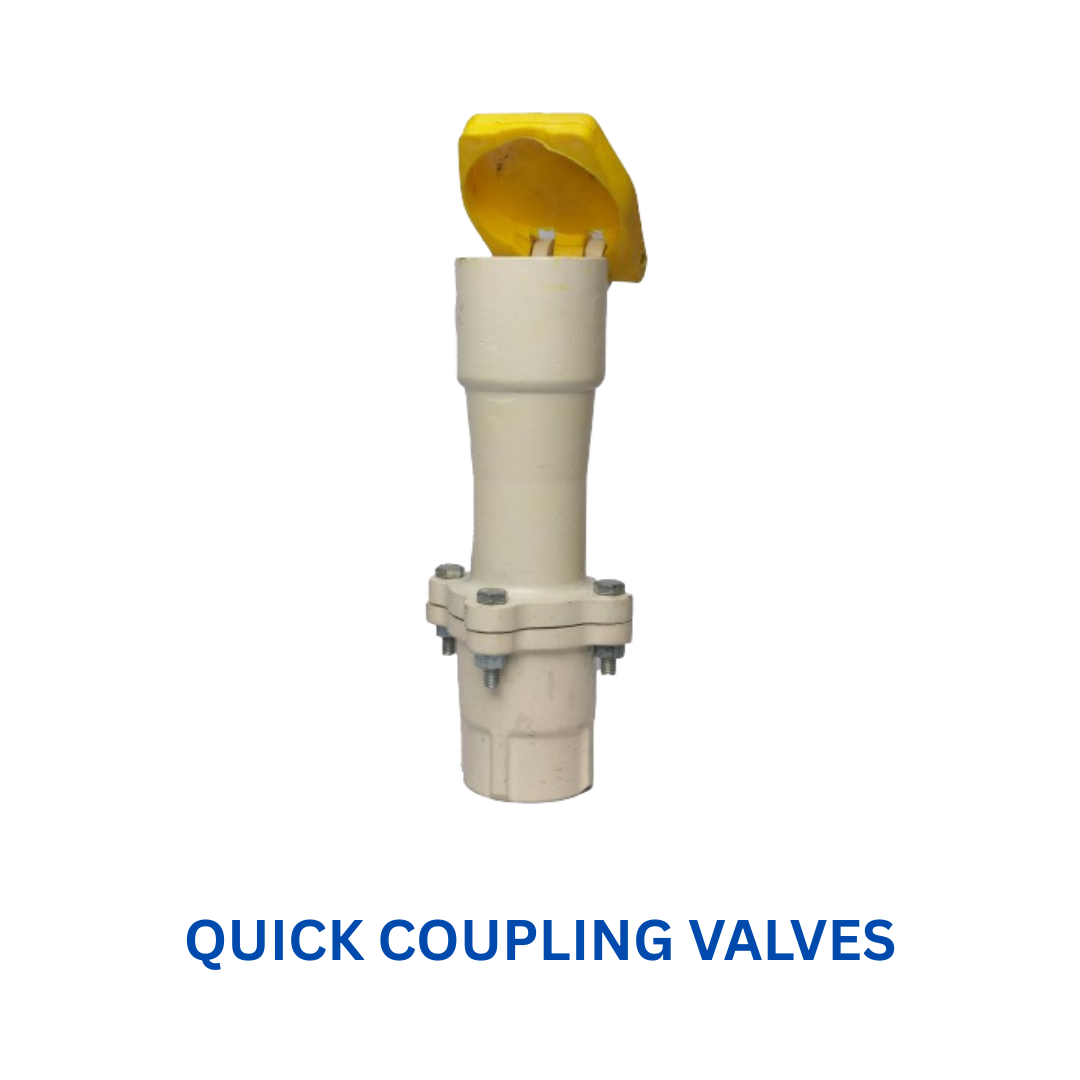

Quick Coupling Valves, Key & Elbow

Landscape Irrigation

Solid one-piece brass body with a durable thermoplastic cover ensures long life and reliable field performance.
Available in 3/4" and 1" BSP female threaded inlet connections for versatile installation compatibility.
Equipped with a corrosion-resistant stainless-steel spring that prevents leakage and ensures smooth operation.
Designed with a drain hole in the body to minimize debris collection and maintain clean internal flow.
Auto-closing lid activated by the spring mechanism keeps the system protected when not in use.

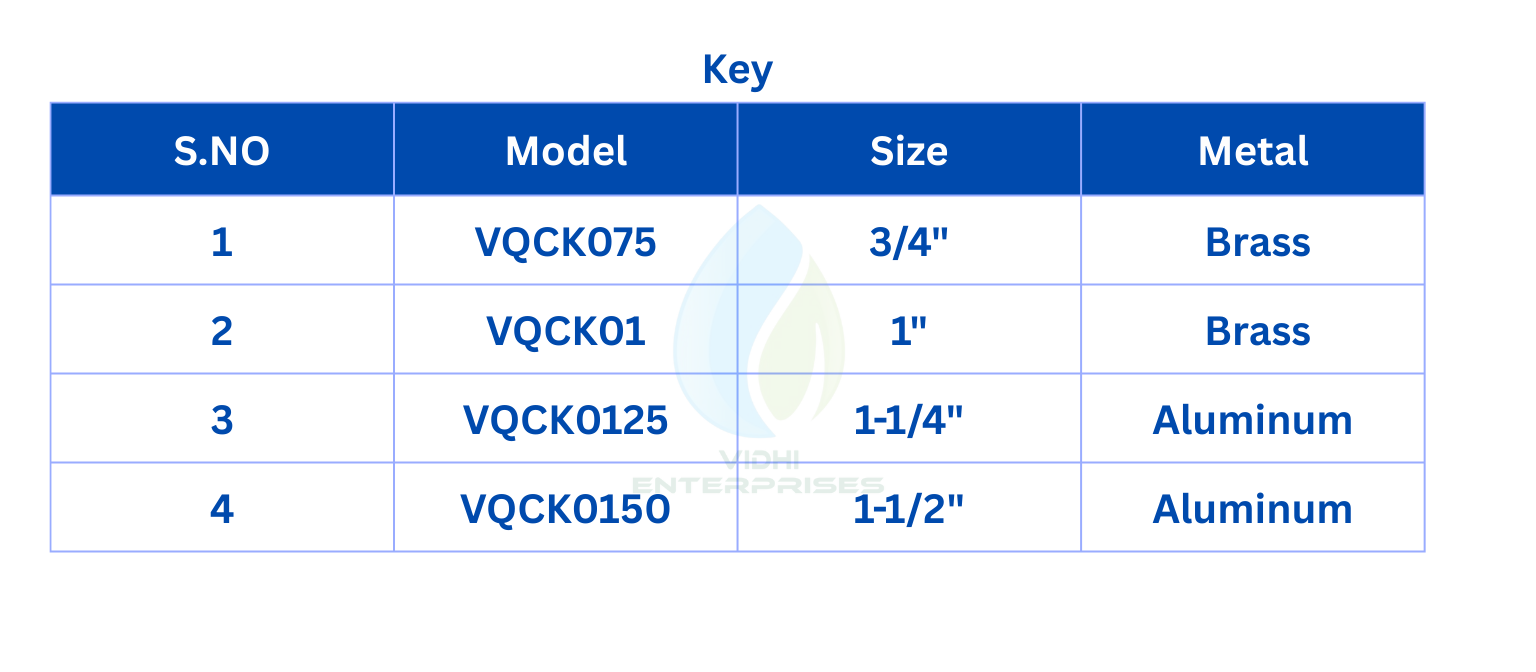

Quick Coupling Valve (QCV) key threads into the top of the valve to provide immediate and secure water access.
360° hose swivel allows easy attachment of a water hose and ensures flexible movement without tangling.
Optional locking cover models are available on request for added security and system protection.
Ideal for residential, commercial landscapes, golf courses, and sports fields, offering convenient water access in irrigation systems.
Available dimensions: 3.8" without cover for ¾" QCV, 5.0" with cover for 1" QCV, with operating range 0.5-8.5 Kg/cm² (5-125 psi) and flow rates 10-70 GPM (38-265 LPM) for ¾" QCV and 10-125 GPM (38-473 LPM) for 1" QCV.
