quick coupling valve

• Heavy-duty one-piece brass body with a protective thermoplastic cover for extended field life.

• Available in 3/4′′ and 1′′ BSP female threaded inlets for wide installation compatibility.

• Stainless steel spring resists corrosion and ensures smooth leak-free operation.

• Built-in drain holes reduce debris buildup and keep internal flow clean.

• Auto-closing lid activated by spring mechanism protects the system when not in use.

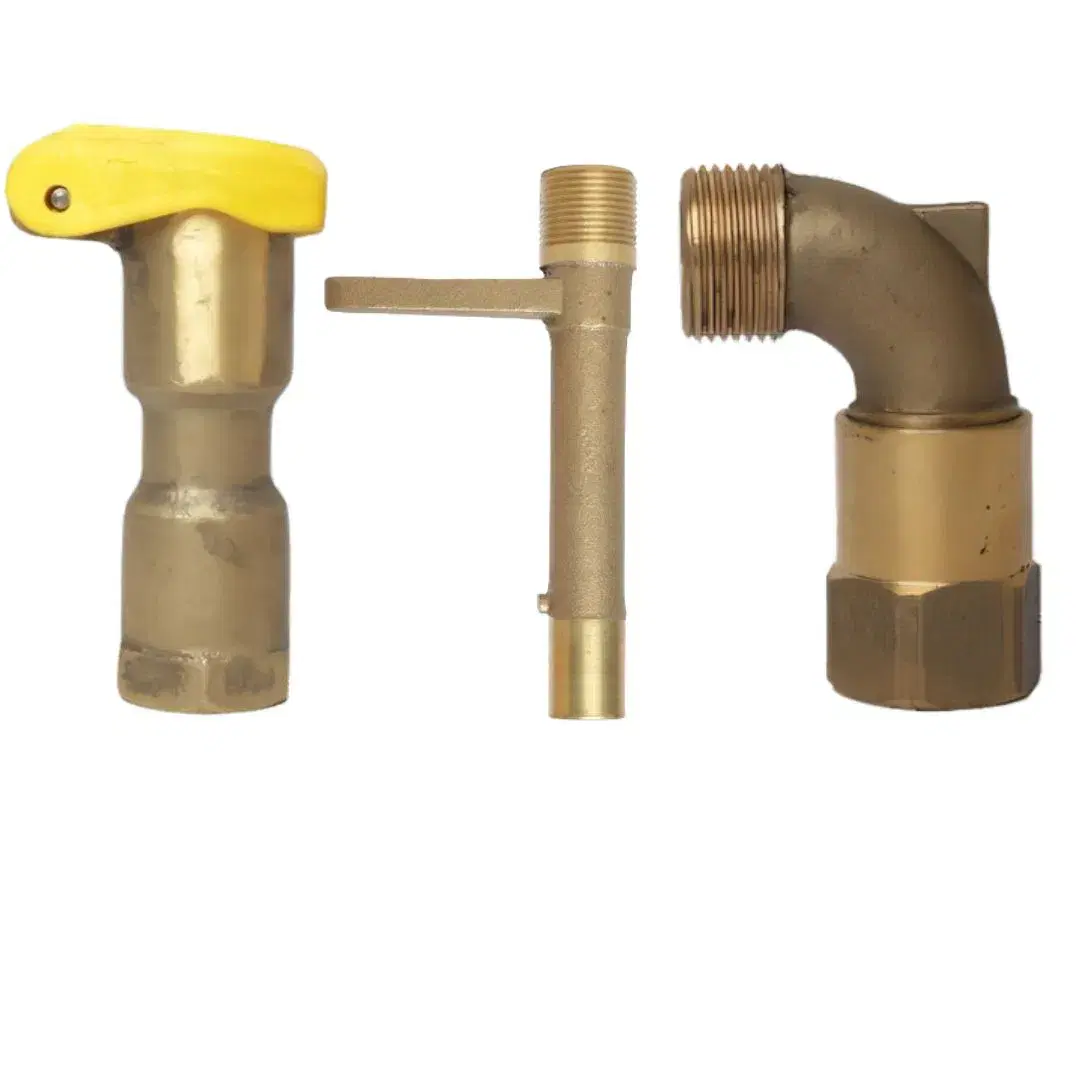

• QCV key securely threads into the valve to provide instant and controlled water access.

• 360° hose swivel enables easy hose connection and flexible movement without tangling.

• Optional locking cover variants available for enhanced safety and system protection.

• Ideal for residential landscapes, commercial projects, golf courses and sports fields.

• Operating pressure ranges from 0.5 to 8.5 Kg/cm2 (5–125 psi).

• Flow capacity ranges from 10–70 GPM (38–265 LPM) for 3/4′′ QCV and 10–125 GPM (38–473 LPM) for 1′′ QCV.
