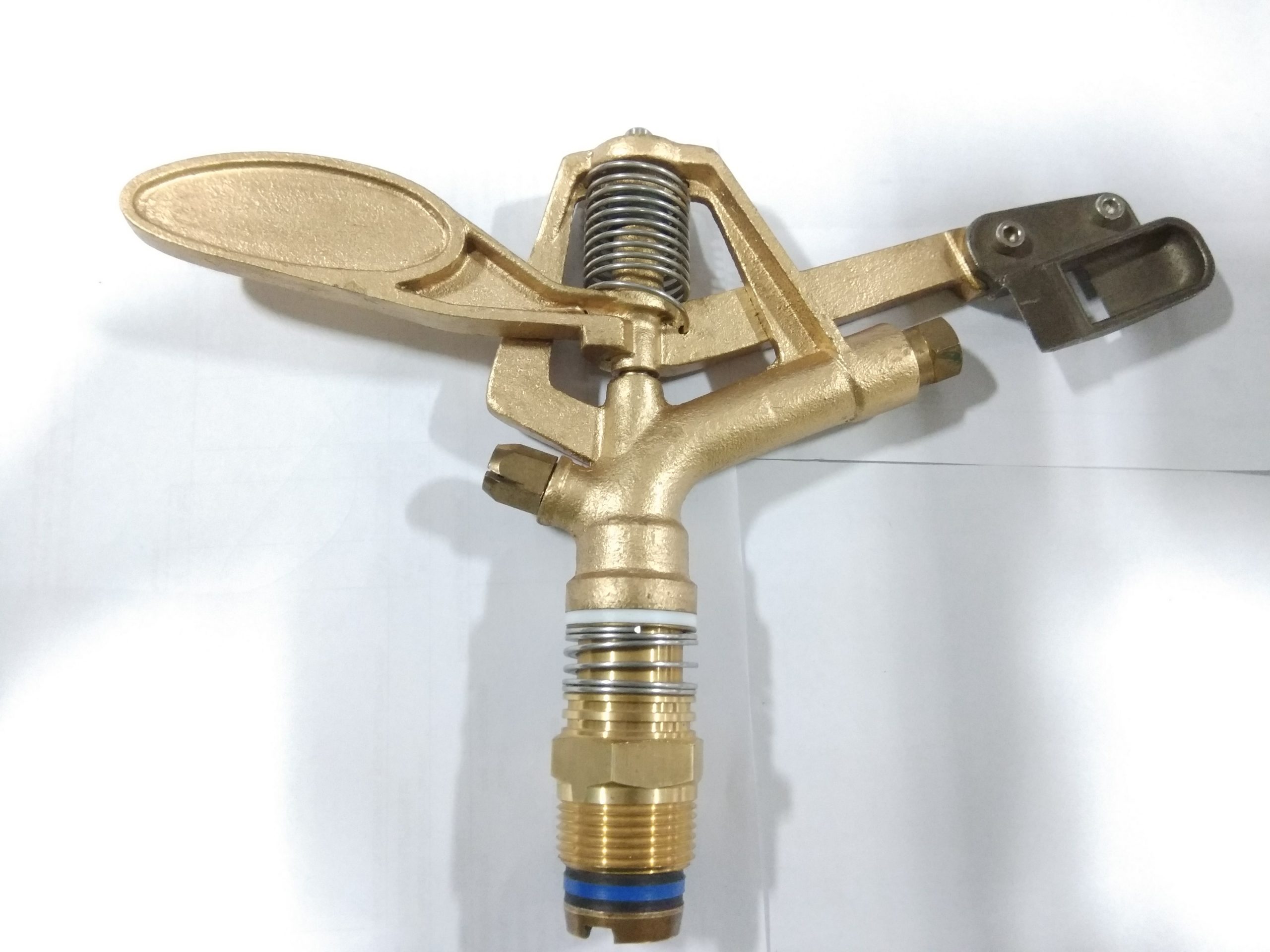

METAL FULL CIRCLE SPRINKLER 1 INCH

In Stock

1,501.00 1,301.00 1 pc

Performance Chart of 1″ Full Circle Sprinkler VS – 04 (New Product)

Main Feature

  • Best Suited for pasture, mining and waste water treatment.

  • Full circle rugged Brass construction with high quality control and proven impact drive.

  • Stainless steel fulcrum pin, arm spring and bearing spring for long wearing reliability

  • Brass bearing construction with chemical resistant bearing seals

  • Brass Body and Arm for additional strength

  • 23Trajectory

  • Ideal for most solid set and portable Non-Turf-Area applications

SPECIFICATION

1” Male NPT/BSP Mail threaded inlet connection

Sigle Nozzle:5.5mm and 5.5mm

Pressure: 2.0 to 6 Kg/cm2 (20 to 85 psi)

FLOW RATE: 55 TO 71 LPM

Nozzle Size in mm Pressure in Kg/CM² Diameter in Meter Discharge in LPM

6.35 X 3.17 3.00 31.60 55.70
4.00 33.00 63.50
5.00 37.10 71.00
(A) 7.14 X 3.17 3.00 33.40 66.00
4.00 37.30 75.70
5.00 40.90 83.60
7.93 X 3.17 3.00 35.20 76.90
4.00 38.10 88.00
5.00 41.50 97.20
8.73 X 3.17 3.00 36.50 86.60
4.00 39.20 109.00
5.00 42.10 110.00

(A) Standard Nozzle SizePerformance is based on ideal conditions of Temperature, Wind Velocity and Humidity.

Thanks,

Vineet Jain

PACKING: 1 (SINGLE PIECE)
