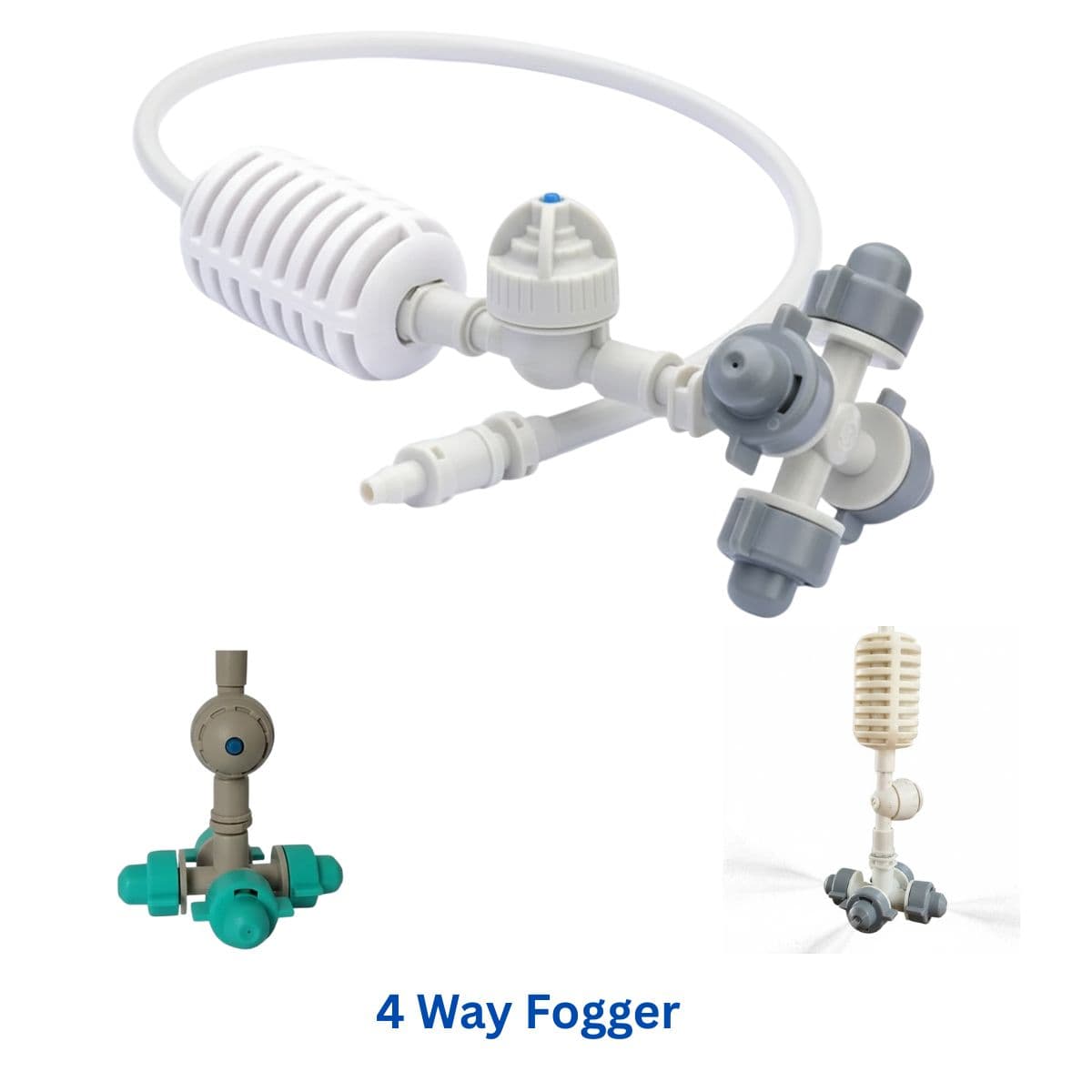

4 -Way Fogger
- Specially designed Anti-Drip device prevents water dripping after each irrigation cycle.
- Anti-Drip device activates automatically at pressures above 1.5 kg/cm² to start fogger operation.
- Shuts down automatically when pressure drops below 0.7 kg/cm², stopping fogger operation.
- Bridgeless design ensures completely drip-free performance.
- Produces fine, uniform droplets of approximately 65 microns at a nominal pressure of 4 kg/cm².
- Constructed from acid-resistant materials, allowing safe use with agricultural chemicals.
- System can be easily cleaned using suitable acid treatment.
- Operates efficiently within a pressure range of 2.5 to 5 kg/cm².
- Recommended working pressure is 4.0 kg/cm² for optimal performance.
- Equipped with a press-fit type inlet connector and 120 mesh (130 micron) filtration for clog-free operation.
Application

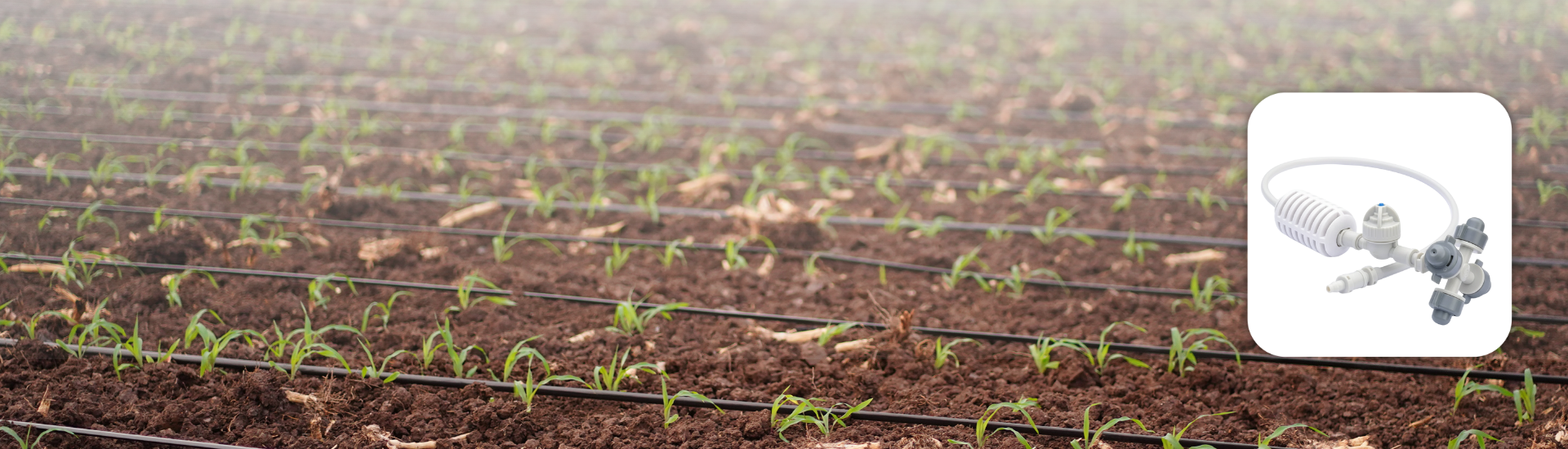

Designed for efficient cooling and humidification in greenhouses, poultry sheds, cow sheds, and other livestock environments. Ideal for irrigation over rooting tables, plant propagation, and seed germination under controlled conditions. Ensures uniform fogging and moisture distribution, creating an optimal microclimate for plant and animal growth.
